USB Mini-B Breakout Board

ICB00115

USB Mini-B Breakout Board

$3.95 USD

In Stock

Technical Overview

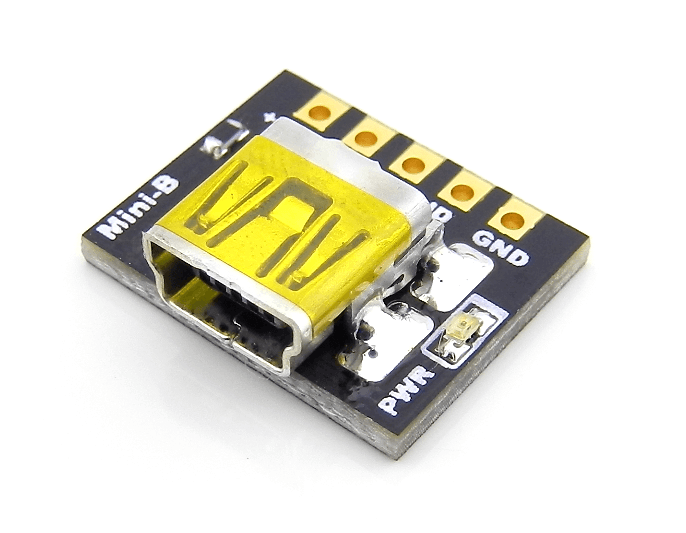

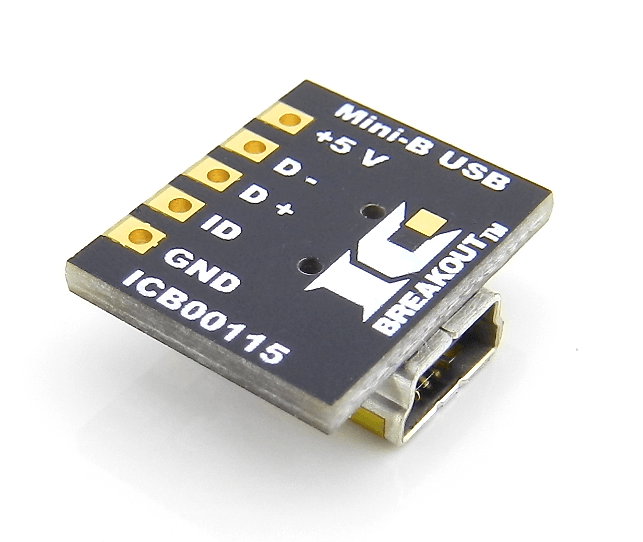

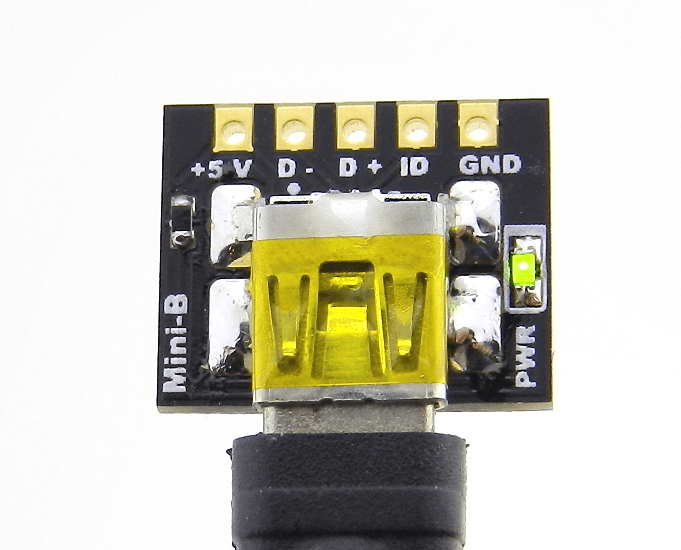

This breakout board was designed to be a DIP adapter for a USB Mini-B connector.  It makes accessing all 5 USB pins easy!  You can be sure you're connected by the green power LED already built into this board.

Technical Details

Footprint Dimensions

Body (mm):

n/a

Pitch (mm):

n/a

Thermal Pad (mm):

n/a

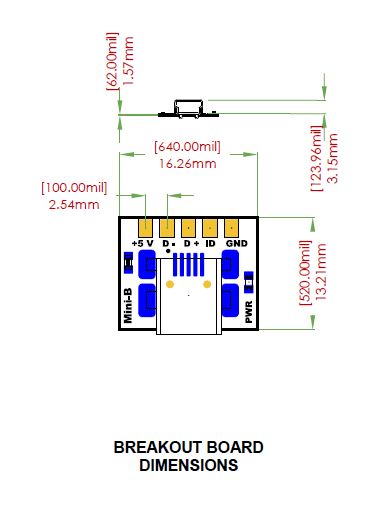

Breakout Board Dimensions

Board Dimensions (mil):

640 x 520

Board Thickness (mil):

62

Through-Hole Spacing (mil):

100 mil (X-axis)

n/a (Y-axis)
Breakout Board Specifications

Board Layers:

2

Finish:

Immersion Gold

Copper:

1 oz

Traces (mil)

10

Trace Lengths (mil):

<200

Pin/Through-Hole Count:

5

What's Included?

Parts Installed on Board:

USB MINI-B CONNECTOR,

Green LED,

1.2K resistor

Parts Included

(but not installed):

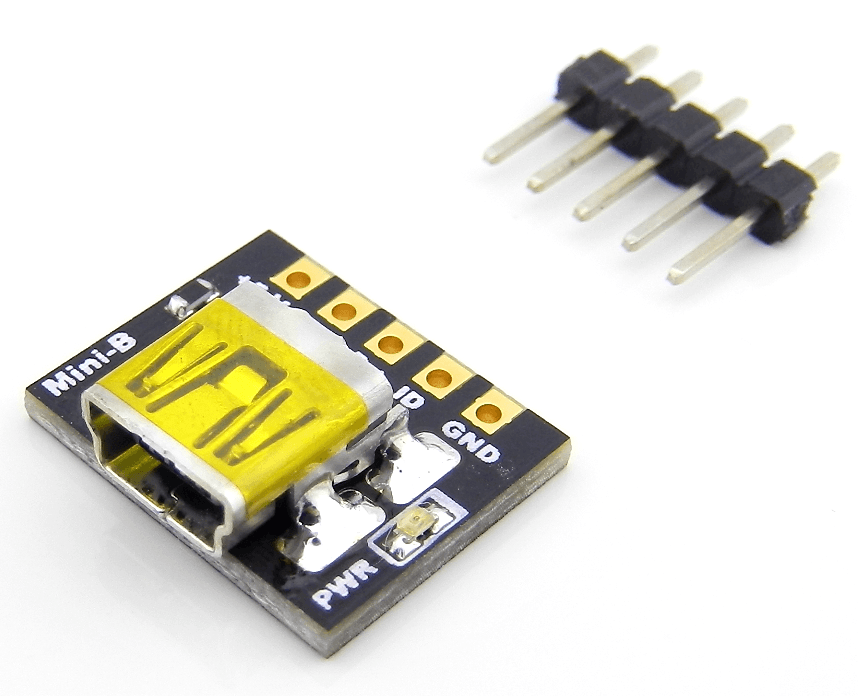

5 PIN Break Away Header (Straight)

Additional Features

    • Easily identifiable PIN 1 indicator and PIN numbers
    • Extended through-hole pads make for an easy connection point for surface mount parts
    • Breadboard friendly pin spacing
    • All boards have been E-tested for failures and are RoHS compliant
…More details on our additional features can be found HERE

Documentation

(includes a 1:1 Scale Image of the board to ensure that it will be a good fit for your project!)
