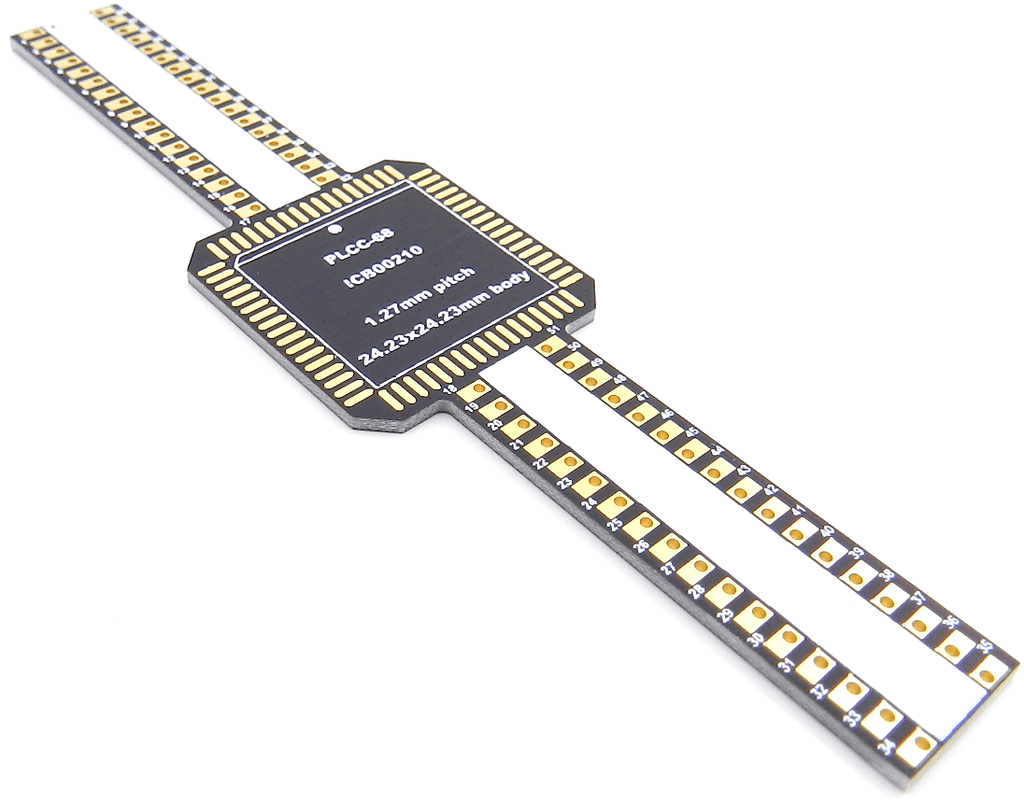

PLCC-68 Breakout Board (24.23 x 24.23 mm, 1.27 mm)

$17.95 USD

Technical Overview

This is a breakout board that was designed to be a DIP adapter for the PLCC-68 type SMD packages. Some of the SMD types that can be used with this board include: LCC, LCCC, PLCC, DLCC, JLCC, CLCC, BCC, LLCC, MLCC.

Technical Details

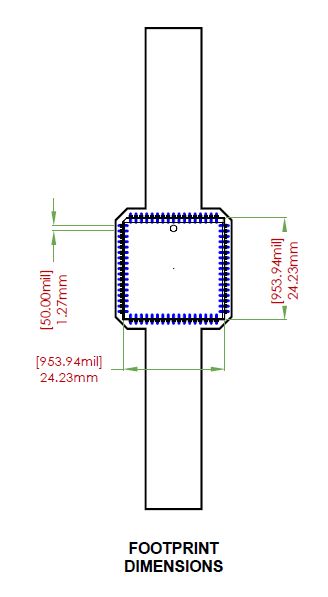

Footprint Dimensions

Body (mm):

24.23 x 24.23

Pitch (mm):

1.27

Thermal Pad (mm):

n/a

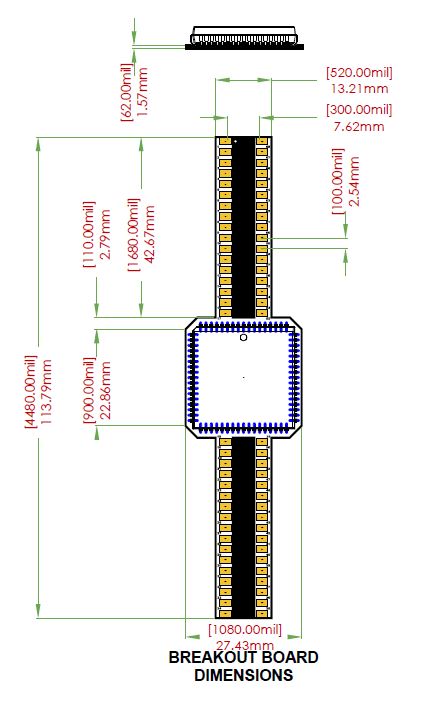

Breakout Board Dimensions

Board Dimensions (mil):

520/1080 x 4480

Board Thickness (mil):

62

Through-Hole Spacing (mil):

300 mil (X-axis)

100 mil (Y-axis)
Breakout Board Specifications

Board Layers:

4

Finish:

Immersion Gold

Copper:

1 oz

Traces (mil)

10

Trace Lengths (mil):

<1800

Pin/Through-Hole Count:

68

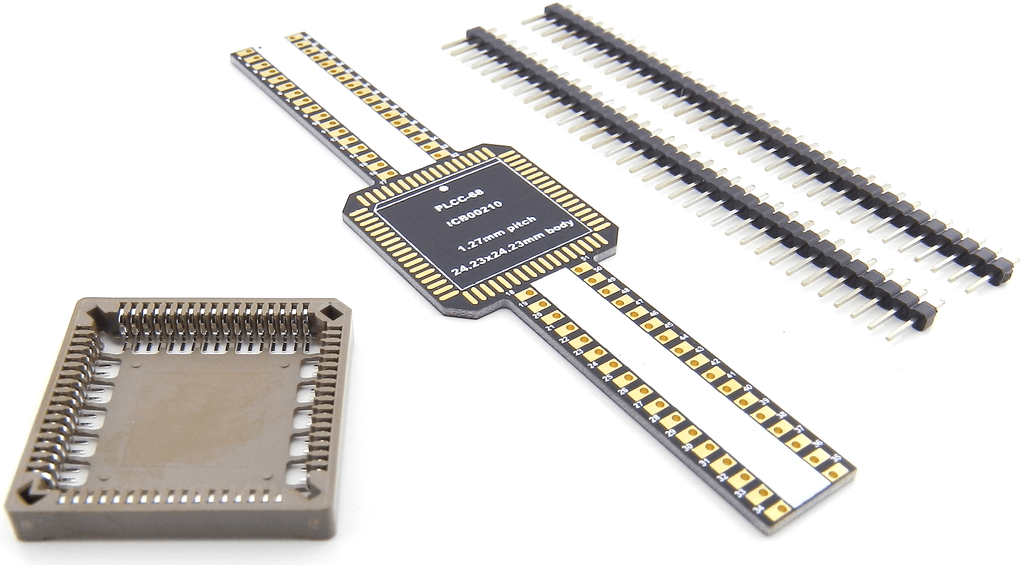

What's Included?

Parts Installed on Board:

None

Parts Included (but not installed):

PLCC Connector Socket

(68 PIN)

68 PIN Break Away Header (Straight)

Additional Features

    • Easily identifiable PIN 1 indicator and PIN numbers
    • White silk “Label Pads” allow you to label the pins for quick reference
    • Extended through-hole pads make for an easy connection point for surface mount parts
    • Breadboard friendly pin spacing
    • All boards have been E-tested for failures and are RoHS compliant
…More details on our additional features can be found HERE

Documentation

(includes a 1:1 Scale Image of the board to ensure that it will be a good fit for your project!)
