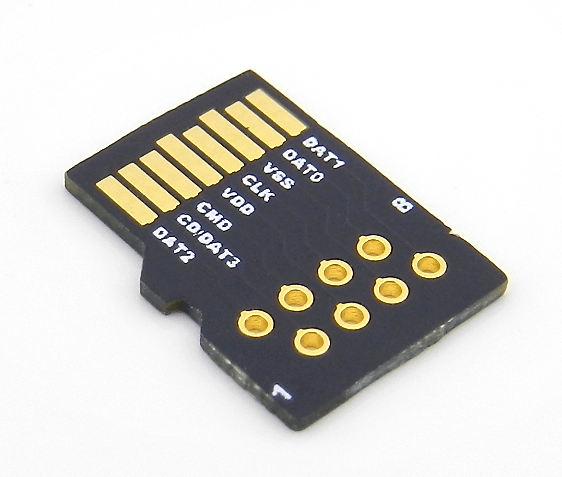

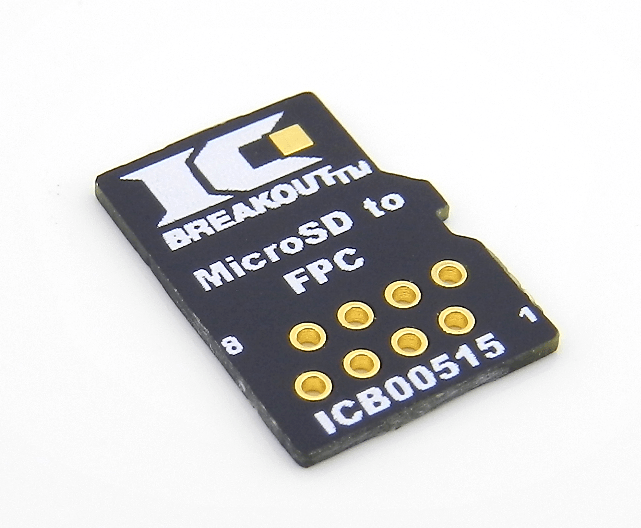

Micro SD to FFC Breakout Board

ICB00515

Micro SD to FFC Breakout Board

$9.95 USD

In Stock

Technical Overview

The MicroSD to FFC breakout board inserts into a Micro SD slot. It is used to extend a connection or to debug an existing socket. We also carry a 8 position flat flex cable that will fit into the FFC connector (Part number ICB94004).

**NOTE: Color may vary from picture**

Technical Details

Footprint Dimensions

Body (mm):

n/a

Pitch (mm):

n/a

Thermal Pad (mm):

n/a

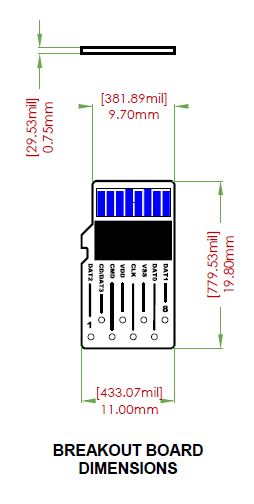

Breakout Board Dimensions

Board Dimensions (mil):

381.89/433.07 x 779.53

Board Thickness (mil):

29.53

Through-Hole Spacing (mil):

n/a (X-axis)

n/a (Y-axis)
Breakout Board Specifications

Board Layers:

2

Finish:

Immersion Gold

Copper:

1 oz

Traces (mil):

10

Trace Lengths (mil):

<400

Pin/Through-Hole Count:

n/a

What's Included?

Parts Installed on Board:

 n/a

Parts Included (but not installed):

8 PIN FFC/FPC Connector

Additional Features

    • Easily identifiable PIN 1 indicator and PIN numbers
    • White silk “Label Pads” allow you to label the pins for quick reference
    • Extended through-hole pads make for an easy connection point for surface mount parts
    • Breadboard friendly pin spacing
    • All boards have been E-tested for failures and are RoHS compliant
…More details on our additional features can be found HERE
